MZ Series Vibration Mill

Adopting German technology, high-precision machinery mill, continuous technological innovation and upgrading, suitable for 100-5000 mesh (150μm-2.5μm).

  • Features:

    Low noise, wear resistance, less pollution, suitable for micro-scale grinding of various soft and hard materials which Mohs hardness less than 9, can be used for mixing, surface coating, activation etc.

  • Applicable:

    Widely used in chemical, mineral, building materials, metallurgy, abrasives, ceramics, refractory materials, food, health care products, new materials and other industries.

For more information, please Email or call our 24-hour hotline.

[email protected]     0086-532-66983518

For more information, please Email or call our 24-hour hotline.

[email protected]

0086-532-66983518

Inquiry
Download

Unique Advantages

To achieve ultrafine, high purification, functional, intelligent, carbon reduction, energy conservation and environmental protection is the mission and responsibility that time has given us.

Product size is easy to adjust

The product particle size can be changed by adjusting feed amount, grinding media, amplitude etc., can be used in series with the classifier to obtain a narrower particle size distribution and finer product.

Wear resistant, less polluting

Grinding media and liners can be made of special materials such as high manganese steel, high chromium steel, stainless steel, alumina, zirconia, quartz, etc., which are wear resistant and less pollution.

Air spring or rubber spring

Instead of hard spring, long service life, good damping effect and low noise.

PLC programming control

Using PLC programming control, achieve hierarchical authority management, storable, vibration sensors etc. using effective warning to prevent problems before they occur.

Working Principle

Creating the future of advanced materials with powder technology.

With the high-speed vibrator or vibration motor, the grinding media (pins, cylpebs or balls) would vibrate in high frequency, high-speed rotating and slow revolving, which would impact, rub and shear materials around them and make them into fine powder and mix them evenly.

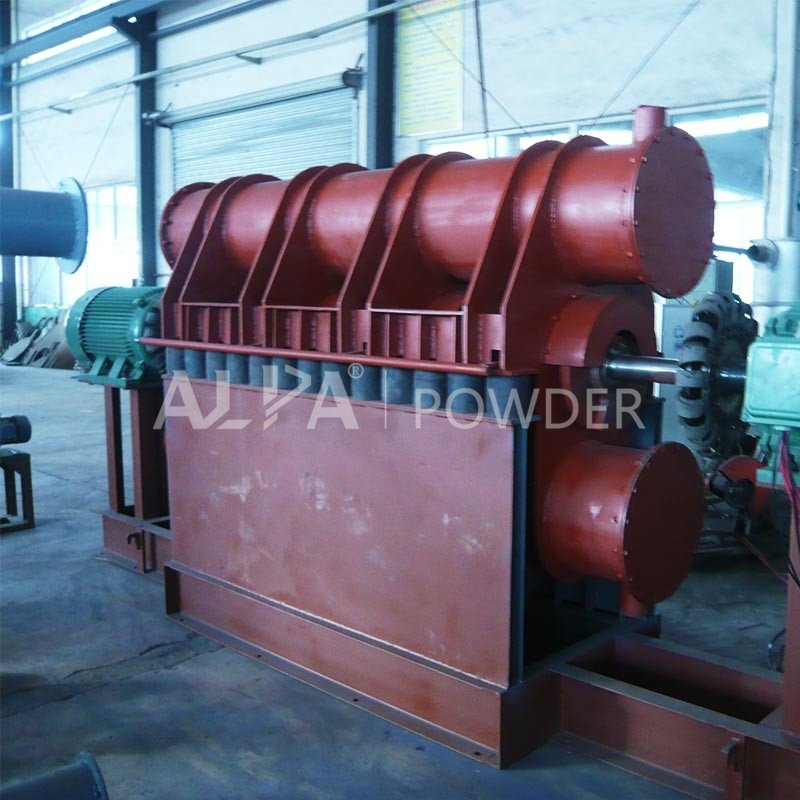

Product Atlas / Video

From dots to planes, from detail to the whole, from product to management, and from consultation to compliant production, we have always insisted on the relentless pursuit of perfection and the courage to surpass ourselves.
More product images / videos

Technical Parameters

Germany’s exquisite technology has been passed down and carried forward by us. Over 15 patents have enabled our products to lead the world.
Medium and small Amplitude Vibration Mill Technical Parameter
ParameterMZ10MZ30MZ50MZ100MZ200MZ300MZ500
Chamber Volume(L)103050100200300500
Input Particle Size (mm)55510101010
Produce Size (um)10-15010-15010-15010-15010-15010-15010-150
Production Capacity (kg/h)1-55-2010-5020-15050-300100-500150-800
Power (KW)0.751.52.23.77.51115
Big Amplitude Vibration Mill Technical Parameter
ParameterMZ100MZ300MZ500MZ600MZ800MZ1000MZ1200MZ2000
Chamber Volume(L)100300500600800100012002000
Input Particle Size (mm)55555555
Produce Size (um)10-15010-15010-15010-15010-15010-15010-15010-150
Production Capacity (kg/h)100-200200-300300-600400-800500-1000800-15001000-18002000-3000
Power (KW)1545557590110150220

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.

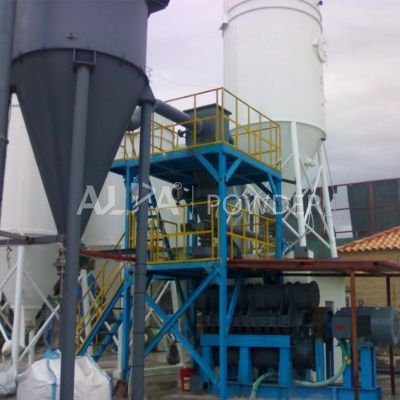

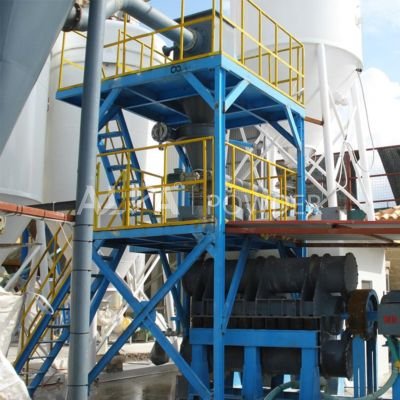

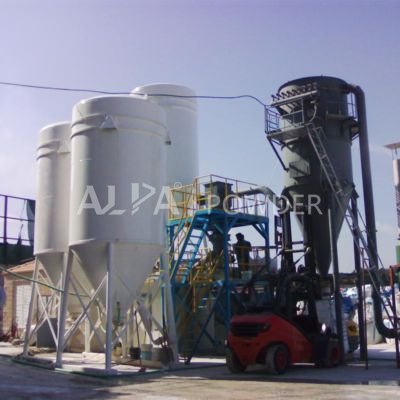

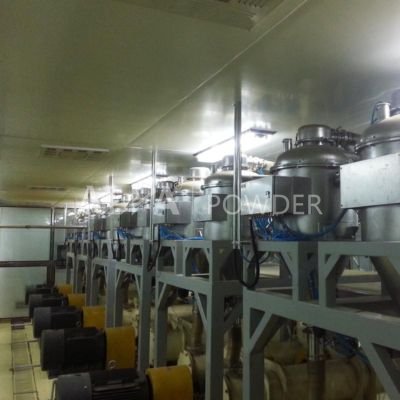

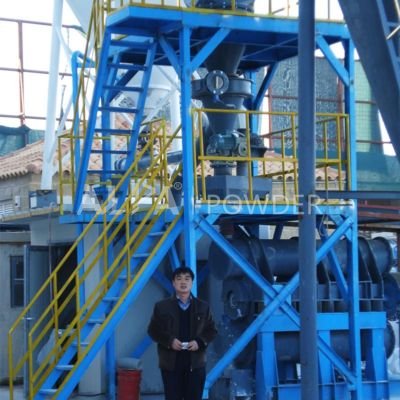

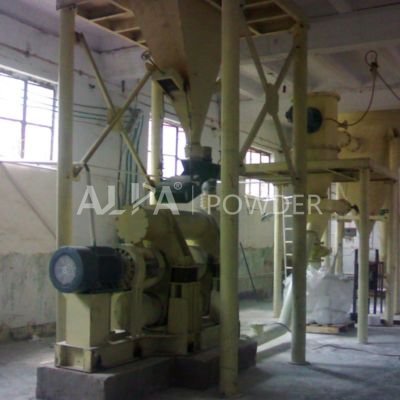

Related Engineering Case

More than 1,000 stories have been collected here. the next one, told by you.
More Engineering Cases

Applications and Services

Equipment is the foundation, technology is the soul, and service is the guarantee.

Applicable material

This equipment is widely used in the chemical industry, minerals, building materials, metallurgy, abrasives, ceramics, refractory materials, food, health care products, new materials and other industries.

Learn more

Customer Service

From your first call, to the next communication, inspection, testing, detection analysis, determining the product model and process flow, to complete equipment manufacturing, installation and commissioning, worker training and compliance production, we will ensure that every step is implemented in place. In order to make you a word-of-mouth communicator of ALPA products and services, we will spare no effort.

Product Parts

The parts service provided by ALPA has been servicing more than 1,000 customers for 18 years and has been proven by markets. The parts are shipped quickly, with full stock, good quality, low loss and long service life, ensuring the continuous and stable operation of your equipment.
