Project Description

CSM-V Series Air Classifier Mill

Adopting German technology, high-precision machinery mill, continuous technological innovation and upgrading, suitable for 50-2500 mesh (300μm-5μm).

  • Features:

    Classic structure, brought in German technology, wide application, originating from the most traditional air classifying mill (ACM), till now there are more than 1000 sets machines are running at our clients’ sites.

  • Applicable:

    Widely used in non-metallic minerals (Mohs hardness < 5), chemical, inorganic salts, pharmaceuticals, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials and other industries.

For more information, please Email or call our 24-hour hotline.

[email protected]     0086-532-66983518

For more information, please Email or call our 24-hour hotline.

[email protected]

0086-532-66983518

Inquiry
Download

Unique Advantages

To achieve ultrafine, high purification, functional, intelligent, carbon reduction, energy conservation and environmental protection is the mission and responsibility that time has given us.

SKF bearing

SKF bearings make the drive run smoothly.

High degree of automation

High degree of automation and visual interface.

PLC programming control

Using PLC programming control, achieve hierarchical authority management, storable, vibration sensors etc. using effective warning to prevent problems before they occur.

Assisted structure

With the assisted of flip structure, it is possible for one person to overhaul and replace machine. Manually assisted to flip machine (hydraulic flip) without tool, replace parts and repairing are convenient.

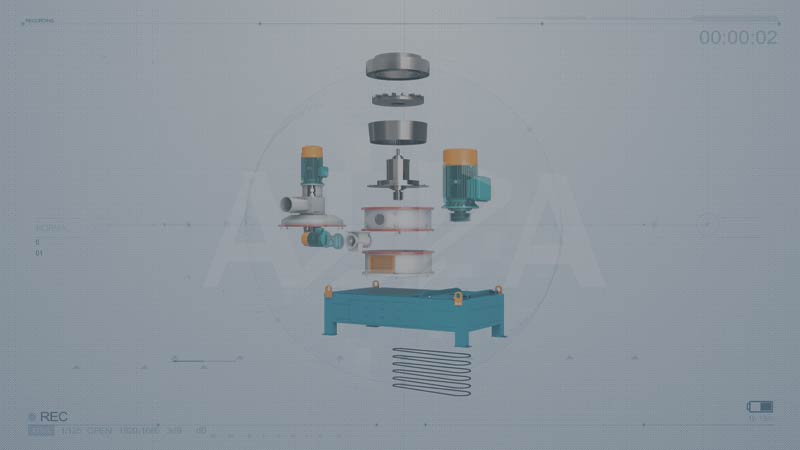

Working Principle

Creating the future of advanced materials with powder technology.

The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc. At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various comprehensive forces such as shearing, friction and collision to finished grinding. The grinded material moves to the classifying zone with the airflow. The classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.

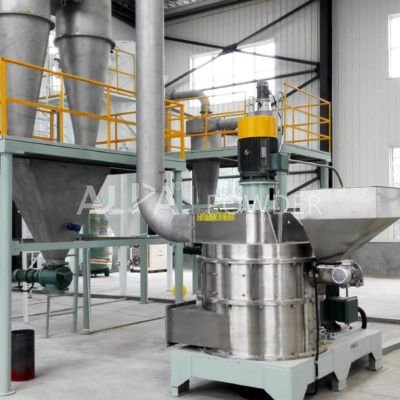

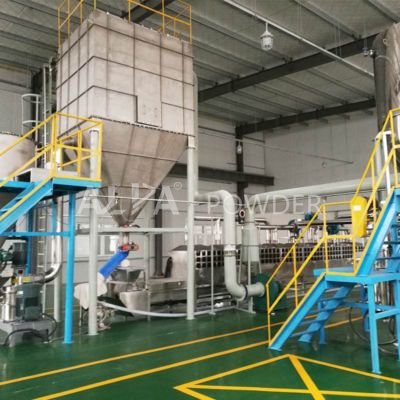

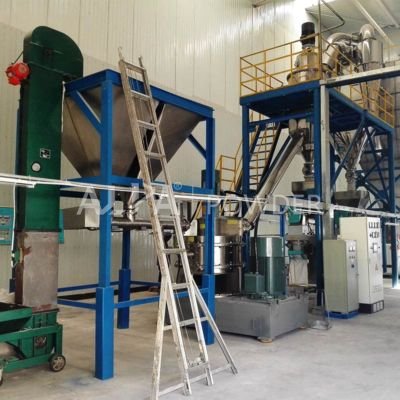

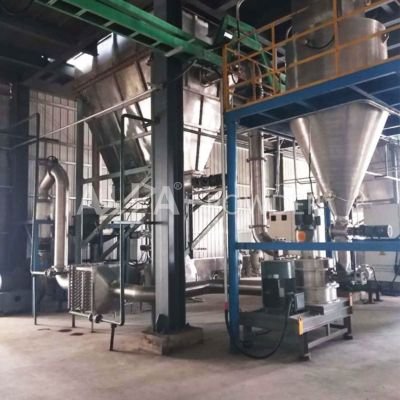

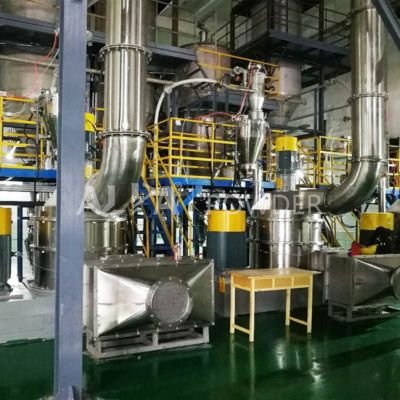

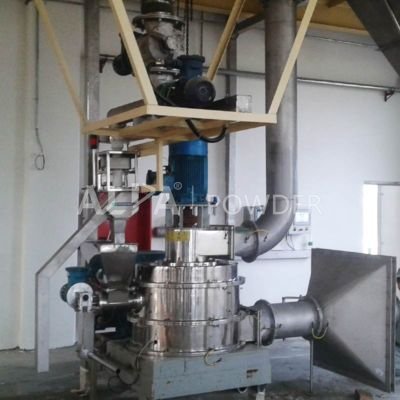

Product Atlas

From dots to planes, from detail to the whole, from product to management, and from consultation to compliant production, we have always insisted on the relentless pursuit of perfection and the courage to surpass ourselves.
More product images / videos

Technical Parameters

Germany’s exquisite technology has been passed down and carried forward by us. Over 15 patents have enabled our products to lead the world.
ParameterCSM-280VCSM-350VCSM-510VCSM-710VCSM-1100VCSM-1250V
Power (kw)Grinding Disc7.511~1522~3045~5590~110132~160
Classifier Impeller1.52.24~5.57.5~111518.5~22
Feeder0.55~1.1
Rotate Speed(r/min)Grinding Disc750062004200280021001700
Classifier Impeller500~4500500~4000400~3000300~2500250~2000200~1600
Feeder20~100
Max Air Flow (m3/h)700900300054001000015000
Product Size(um)5~30010~300
Production Capacity(kg/h)2~10010~40015~60030~120060~1500300~3000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.

Related Engineering Case

More than 1,000 stories have been collected here. the next one, told by you.
More Engineering Cases

Applications and Services

Equipment is the foundation, technology is the soul, and service is the guarantee.

Applicable materials

The machine is widely used in non-metallic minerals (Mohs hardness < 5), chemical, inorganic salts, pharmaceuticals, food, pigments, dyes, pesticides battery materials, minerals, refractory materials and other industries.
Learn more Applications.

Learn more

Customer Service

From your first call, to the next communication, inspection, testing, detection analysis, determining the product model and process flow, to complete equipment manufacturing, installation and commissioning, worker training and compliance production, we will ensure that every step is implemented in place. In order to make you a word-of-mouth communicator of ALPA products and services, we will spare no effort.

Product Parts

The parts service provided by ALPA has been servicing more than 1,000 customers for 18 years and has been proven by markets. The parts are shipped quickly, with full stock, good quality, low loss and long service life, ensuring the continuous and stable operation of your equipment.
